CHV/V/2V

750/900/1100

General Features

  • Internal and external nontoxic PVC coated hot galvanized steel according to the food regulamentations;
  • Evaporador, condenser and all tubes in cooper;
  • Free maintenance condenser;
  • 2 independents high efficiency cooling groups (COP) and low thermic emission;
  • High storage capacity;
  • High energy efficiency and low operation costs;
  • Refrigerant gas R134a or R290 as opcional;
  • Automatic defrost by hot gas opcion;
  • LED lighting as opcion;
  • Customization.

  • chv-v-750
  • chv-v-900
  • chv-v-1100
  • chv-2v-750
  • chv-2v-900
  • chv-2v-1100

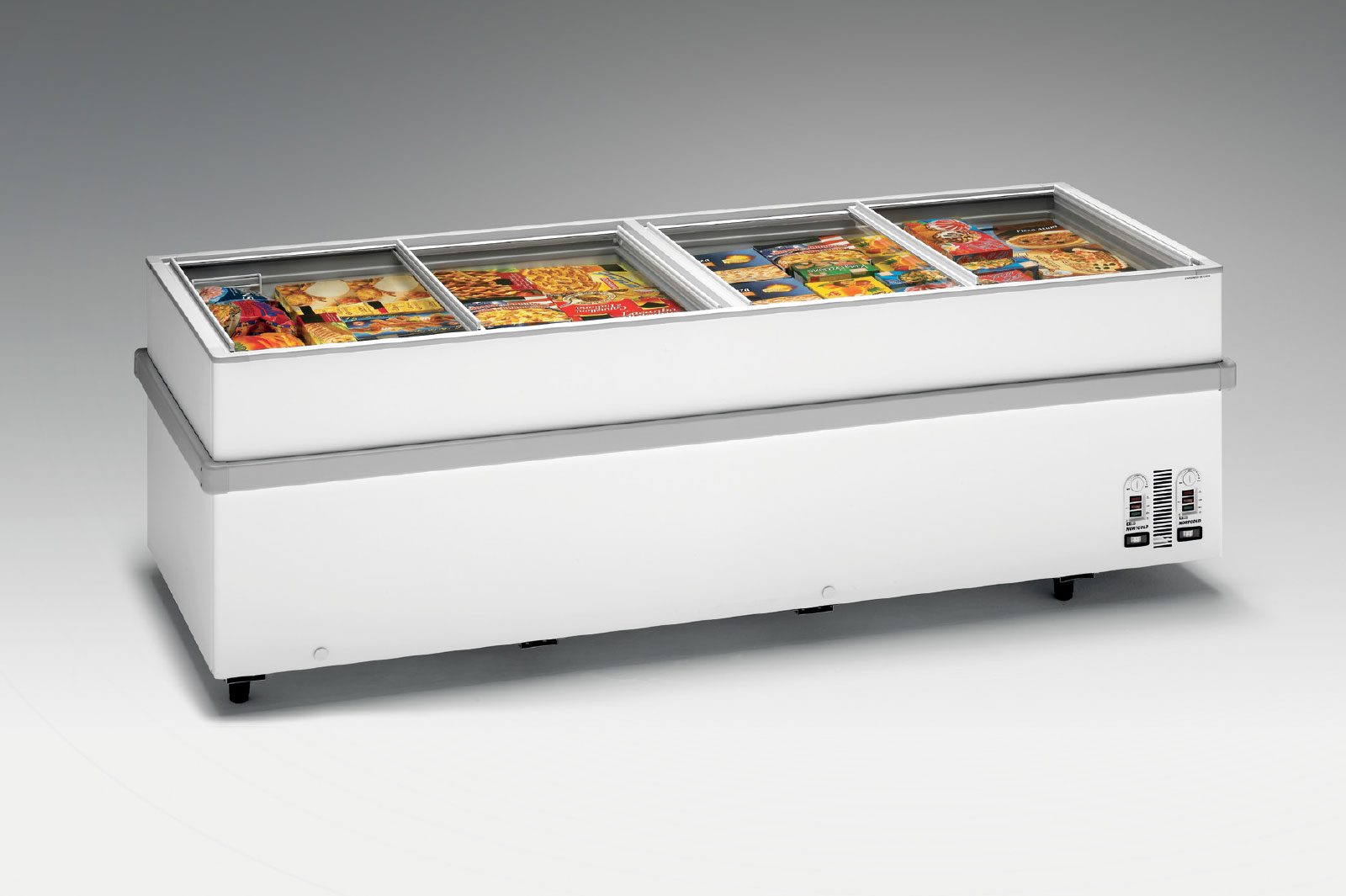

Profissional freezer and chiller display
750 CHV/V 900 CHV/V 1100 CHV/V
- | D | DPN - | D | DPN - | D | DPN
Technical Data
Total Display Area (TDA) m² 1.1 1.5 2.0
Climatic class (EN23953) 3L1 | 3M1 3L1 | 3M1 3L1 | 3M1
Temperature range °C -18/-28 | -18/-28 | +15/-26 -18/-28 | -18/-28 | +15/-26 -18/-28 | -18/-28 | +15/-26
Maintenance free condenser ✓ ✓ ✓
Visual alarm ○ | ✓ | ✓ ○ | ✓ | ✓ ○ | ✓ | ✓
HACCP - Hazard analysis and critical control points NA | ✓ | ✓ NA | ✓ | ✓ NA | ✓ | ✓
Surveillance system - | ○ | ○ - | ○ | ○ - | ○ | ○
Net volume lt 459 652 805
Gross volume lt 597 839 1032
Electrical Data
Voltage/Frequency V/Hz 230/50 230/50 230/50
Rated Power W 316 | 316 | 456 356 | 356 | 410 356 | 356 | 456
Rated Current A 1.6 | 1.6 | 4.2 1.8 | 1.8 | 3.3 1.8 | 1.8 | 4.2
Energy Consumption kWh/24h 3.9 | 4.5 | 5.9 4.5 | 5.4 | 6.1 4.9 | 5.4| 6.5
Energy Efficiency Index (EEI)
Refrigerant Data
Refrigerant type R290 R290 R290
Number of compressors 2 2 2
Maximum operating pressure bar 70 70 70
Dimensions and Weight Data
Cabinet dimensions mm 1550x960x780 2050x960x780 2500x960x780
Packaging dimension mm 1640x1030x840 2140x1030x840 2590x1030x840
Net weight kg 81 105 125
Gross weight kg 137 160 200

Devido ao constante desenvolvimento do produto, a Arcaboa S.A. reserva o direito de alterar as especificações técnicas sem aviso prévio // Due to the constant product development, Arcaboa S.A. reserves the right to change technical details without privious notice
