Panorâmica

2/TOPO

General Features

  • Internal and external nontoxic PVC coated hot galvanized steel according to the food regulamentations;
  • Evaporador, condenser and all tubes in cooper;
  • Free maintenance condenser;
  • 2 high efficiency cooling groups (COP) and low thermic emission;
  • High energy efficiency and low operation costs;
  • Refrigerant gas R134a or R290 as opcional;
  • Automatic defrost by hot gas;
  • False adjustable bottom on models D and DPN;

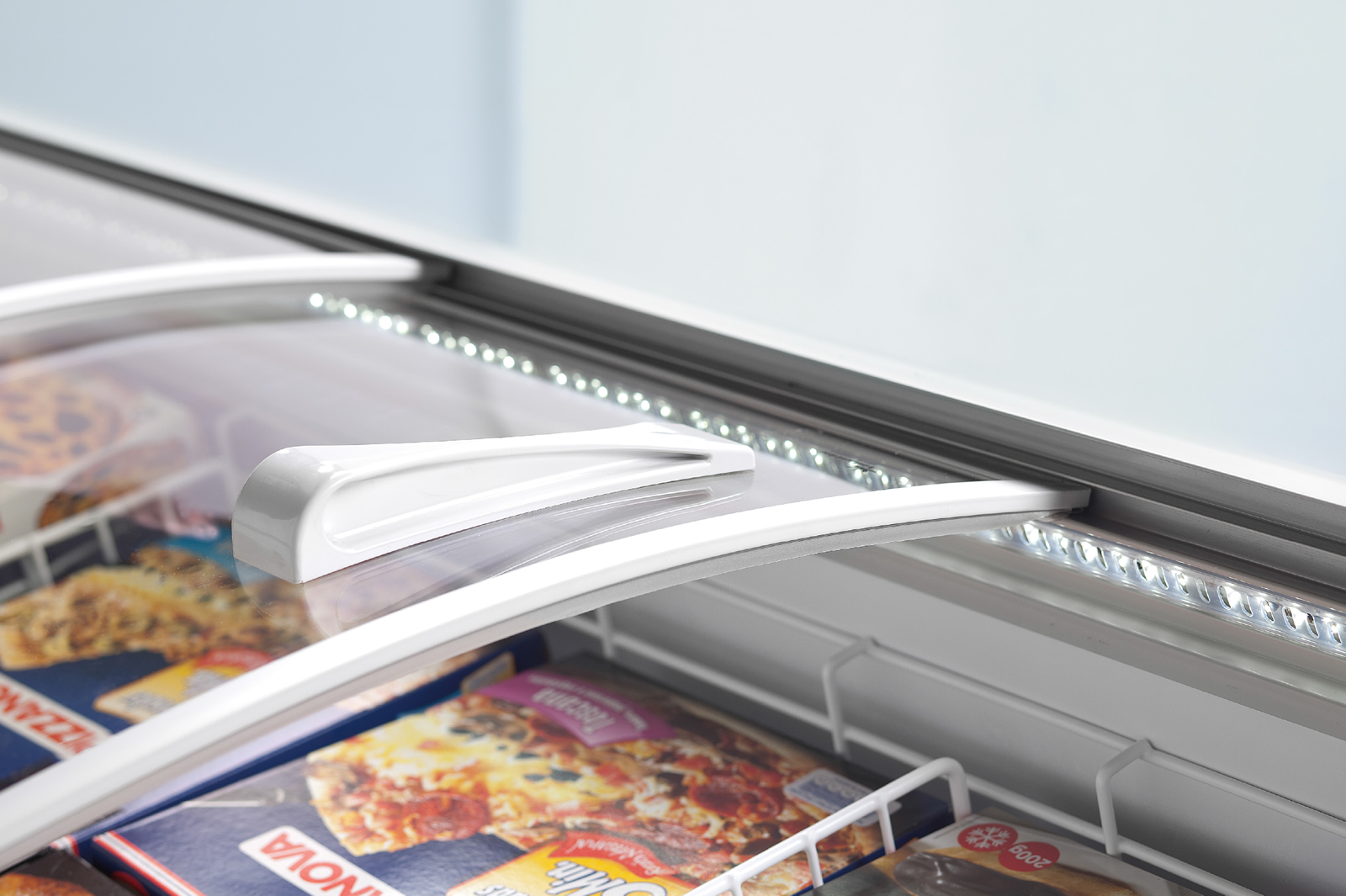

  • LED lighting;
  • Customization.

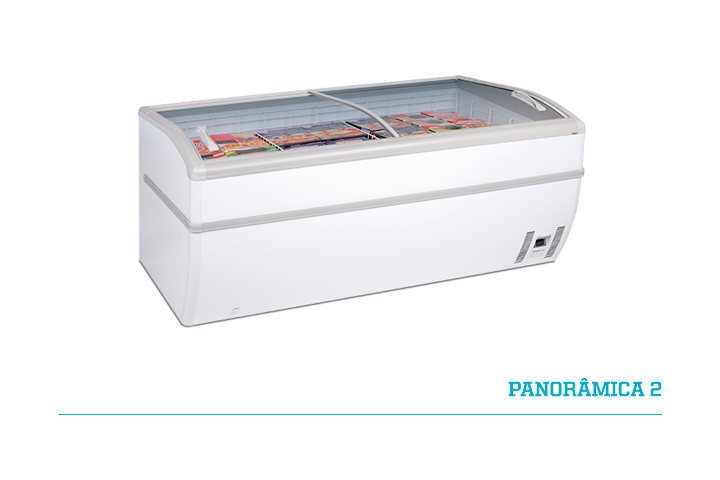

  • panoramica-2

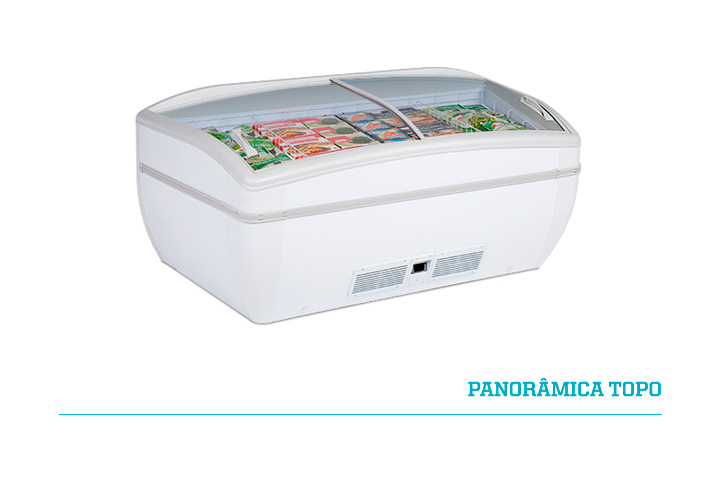

  • panoramica-topo
Professional freezer and chiller display
PANORÂMICA 2 PANORÂMICA TOPO
- | D | DPN - | D | DPN
Technical Data
Total Display Area (TDA) m² 1.5 1.4
Climatic class (EN23953) 3L1 | 3M1 3L1 | 3M1
Temperature range °C -18/-28 | -18/-28 | +15/-26 -18/-28 | -18/-28 | +15/-26
Maintenance free condenser ✓ ✓
Visual alarm ○ | ✓ | ✓ ○ | ✓ | ✓
HACCP - Hazard analysis and critical control points NA | ✓ | ✓ NA | ✓ | ✓
Surveillance system - | ○ | ○ - | ○ | ○
Net volume lt 670 450
Gross volume lt 890 620
Electrical Data
Voltage/Frequency V/Hz 220/50 220/50
Rated Power W 426 | 426 | 526 421 | 421 | 510
Rated Current A 2.1 | 2.1 | 4.5 2.0 | 2.0 | 4.4
Energy Consumption kWh/24h 5,5 | 6,0 | 7,45(-)/3,34(+) | 6,28 | 8,68(-)/4,48(+)
Energy Efficiency Index (EEI)
Refrigerant Data
Refrigerant type R290 R290
Number of compressors 2 2
Maximum operating pressure bar 70 70
Dimensions and Weight Data
Cabinet dimensions mm 2020x920x830 1965x920x830
Packaging dimension mm 2110x1020x950 2080x1020x950
Net weight kg 129 121
Gross weight kg 170 162

Devido ao constante desenvolvimento do produto, a Arcaboa S.A. reserva o direito de alterar as especificações técnicas sem aviso prévio // Due to the constant product development, Arcaboa S.A. reserves the right to change technical details without privious notice
