VF2D MODEL

MULTIPLEX FREEZER SYSTEM

One freezer, multiple installations.

Professional vertical display case for frozen products.

E(DE) freezer with automatic defrost and water evaporation.
Interior and exterior in galvanized sheet metal coated with PVC according to food regulations;

Copper evaporator, condenser, and entire cooling circuit;
Maintenance-free condenser;
2 high-efficiency (COP) refrigeration units with low thermal emissions;

High energy efficiency and low operating costs;
LED interior lighting;

The same freezer, with multiple combinations.

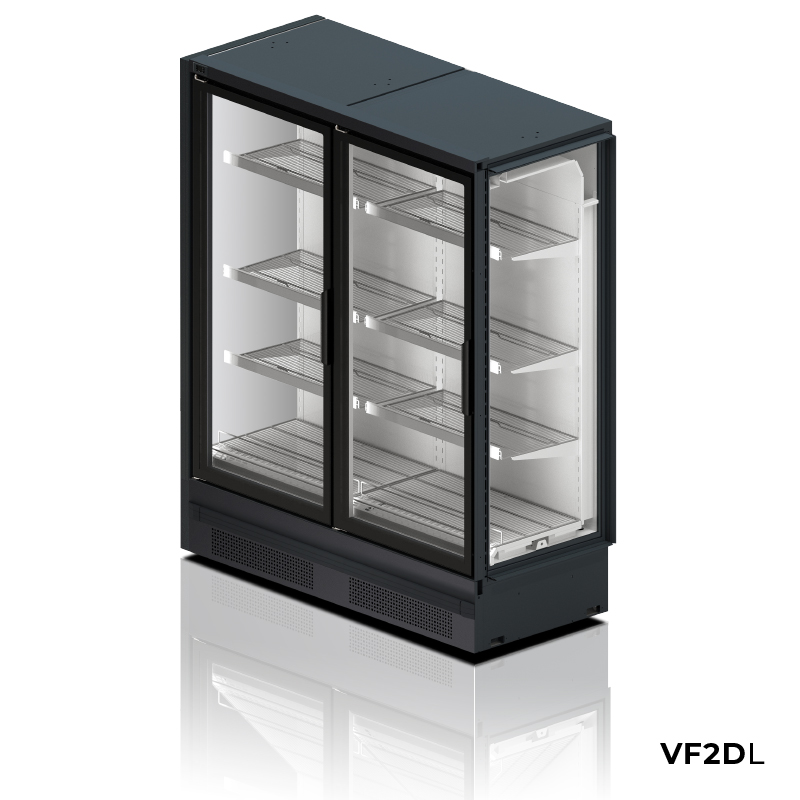

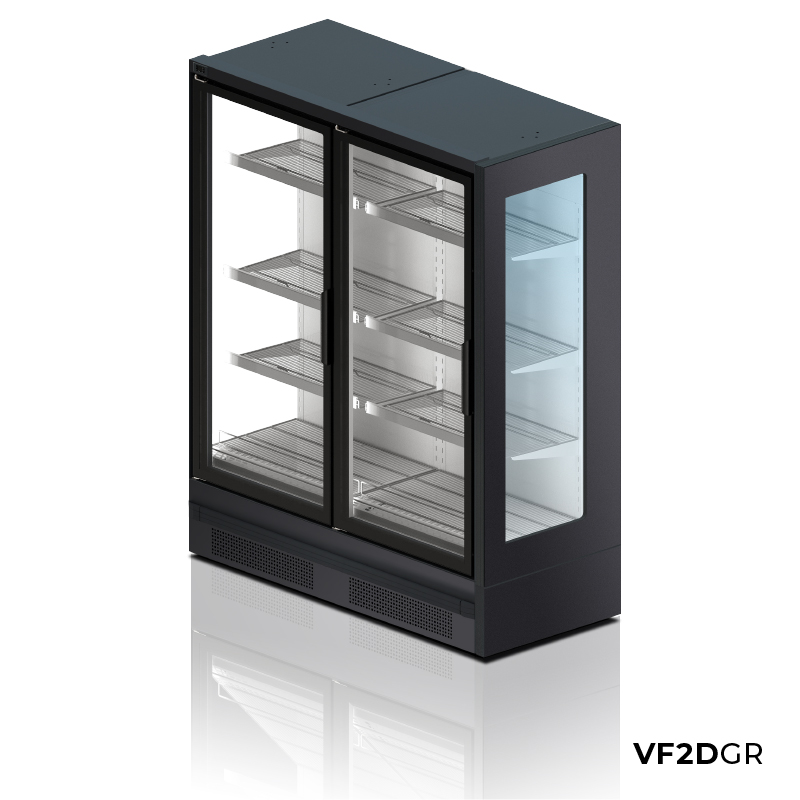

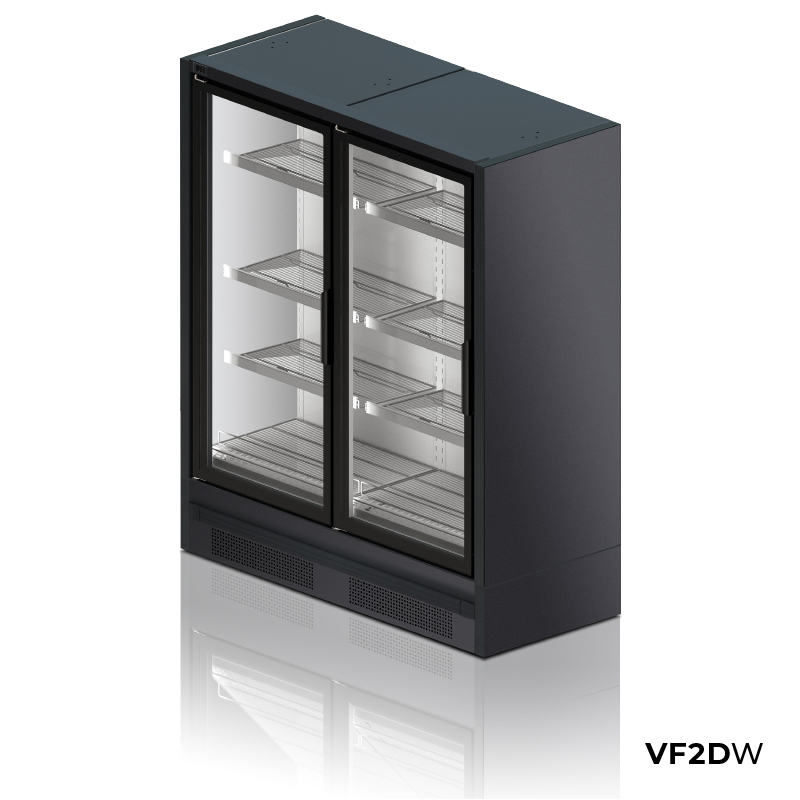

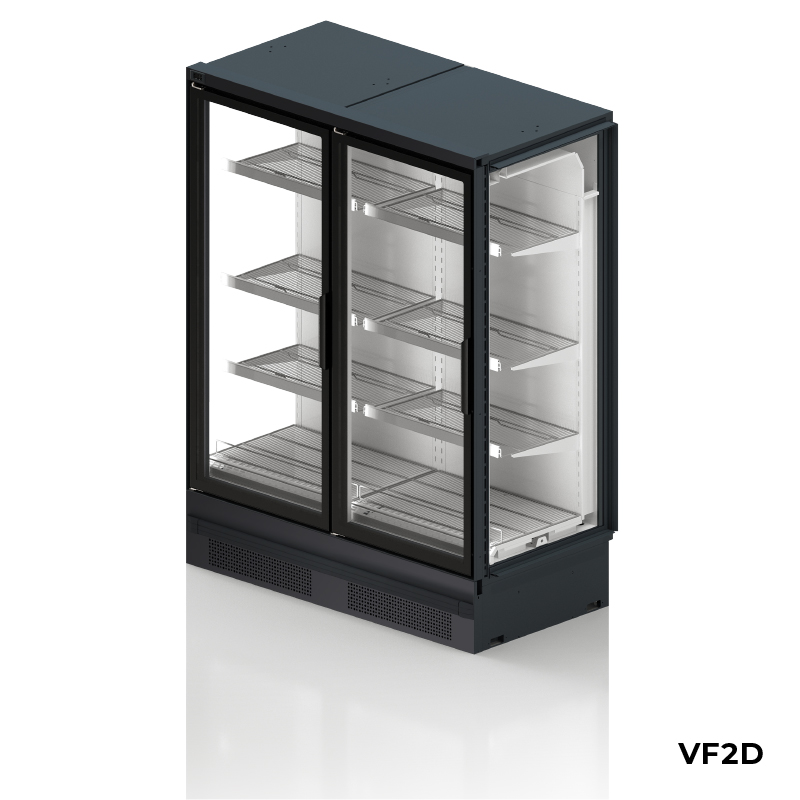

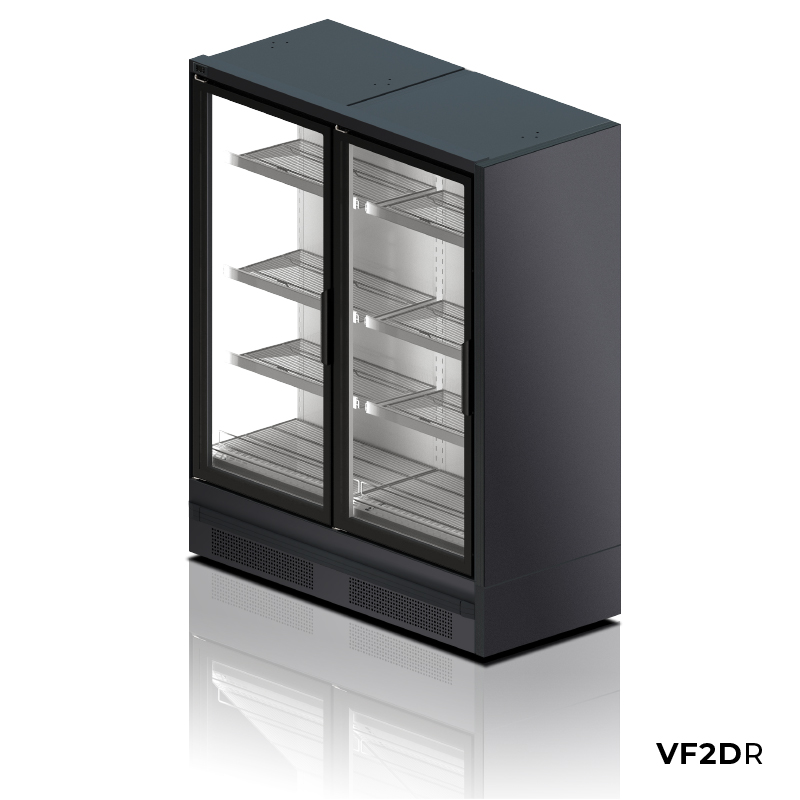

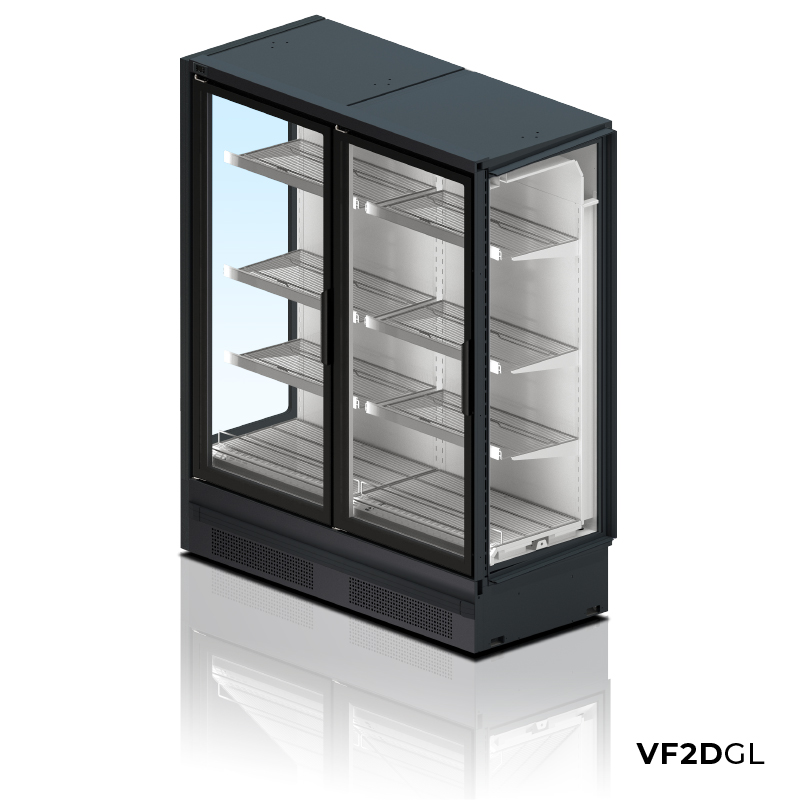

MODEL VF 2D VF 2D W VF 2D GW
Technical Data
Instalation PLUG IN PLUG IN PLUG IN
Refrigeration Ventilated Ventilated Ventilated
Closing sistem Triple glass doors Triple glass doors Triple glass doors
Triple glass sidewalls X X
Opaque sidewalls X
Heating frame
Total Display Area (TDA) >>> m² 2,34 2,34 2,34
Climatic class (EN23953) 3L1 3L1 3L1
Temperature range >>> °C -20 / -24 -20 / -24 -20 / -24
Maintenance free condenser
EC fan motor evaporator
EC fan motor condenser
Variable speed compressor
Hotgas defrost
LED Lighting vertical in door frame vertical in door frame vertical in door frame
Visual and alarm
HACCP - Hazard analysis and critical control points
Net volume >>> lt 890 890 890
Gross volume >>> lt 1450
Noise level according to EN/IEC 60335-2-89
Electrical Data
Voltage/Frequency >>> V/Hz 220-240/50-60 220-240/50-60 220-240/50-60
Rated Power >>> W 2100 2100 2100
Rated Current >>> A 10,0 10,0 10,0
Energy Consumption >>> kWh/24h - - - 27,7 28,9
Energy Efficiency Index (EEI) - - - 47,8 49,9
Class
Refrigerant Data
Refrigerant type R290 R290 R290
Number of compressors 2 2 2
Refrigerant gas charge >>> Kg 0,103 0,103 0,103
Dimensions and Weight Data

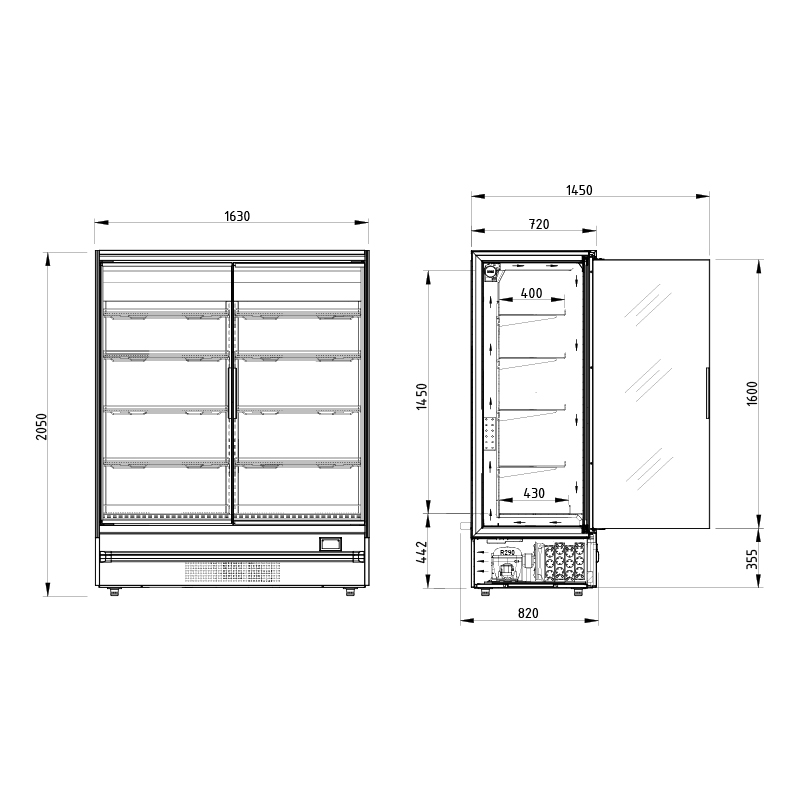

Cabinet dimensions >>> mm 2000 x 1680 x 720 2000 x 1680 x 720 2000 x 1680 x 720
Packaging dimension >>> mm 2150 x 1800 x 825 2150 x 1800 x 825 2150 x 1800 x 825
Net weight >>> Kg 343 380 503
Gross weight >>> Kg 420 457 580

VF2D MODULAR SOLUTIONS

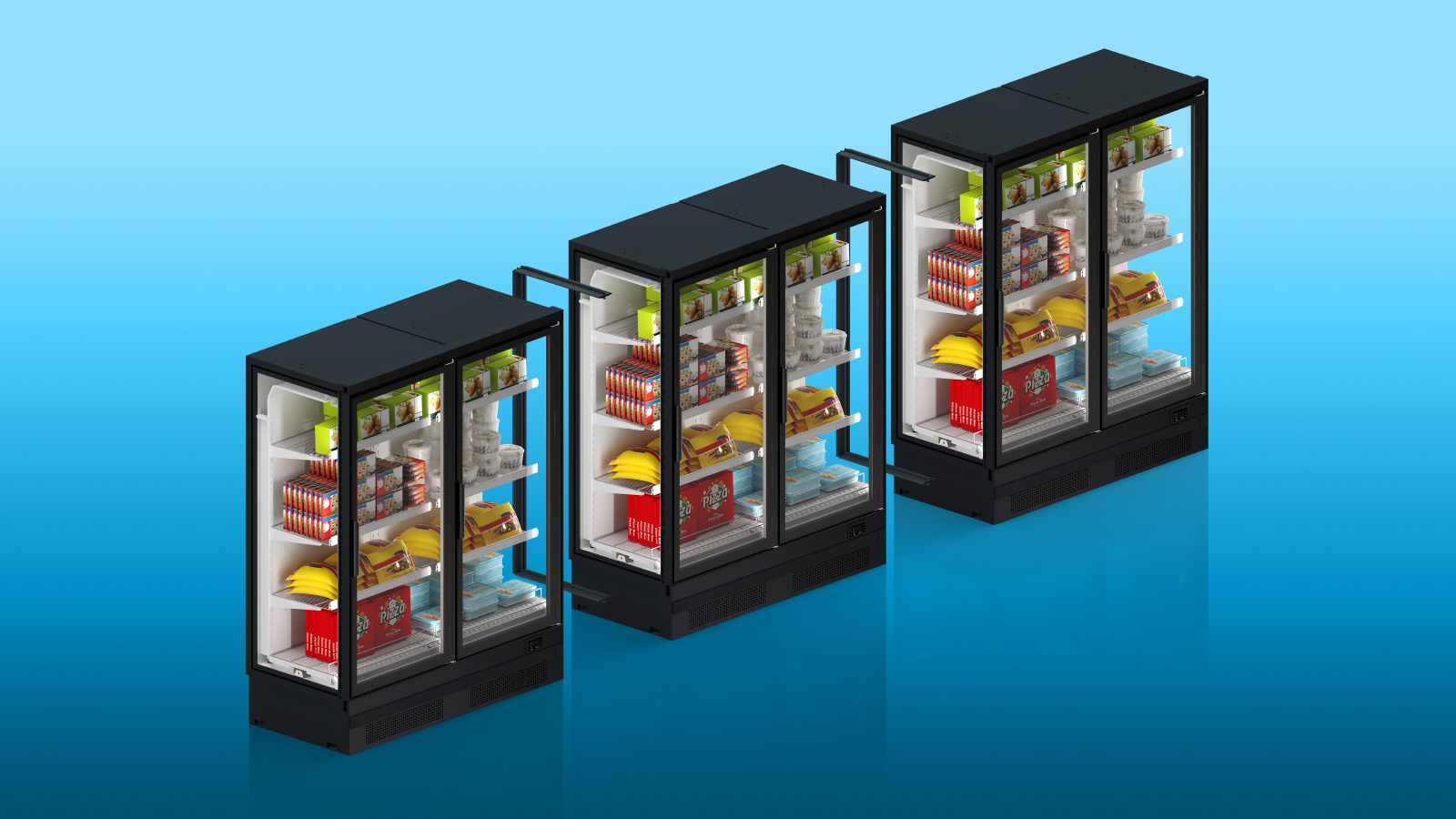

Highly efficient and flexible plug-in for displaying frozen products. The VF2D display module can be assembled with other equipment of the same model in different configurations:
Stand alone / LINE UP / ISLAND.
With the plug-in function, simply connect it to the power grid and the VF2D display becomes automatically operational and autonomous. With an integrated RS485 module, it is prepared for individual connection/monitoring of the equipment.

VF2D MULTIPLEX FREEZER SYSTEM

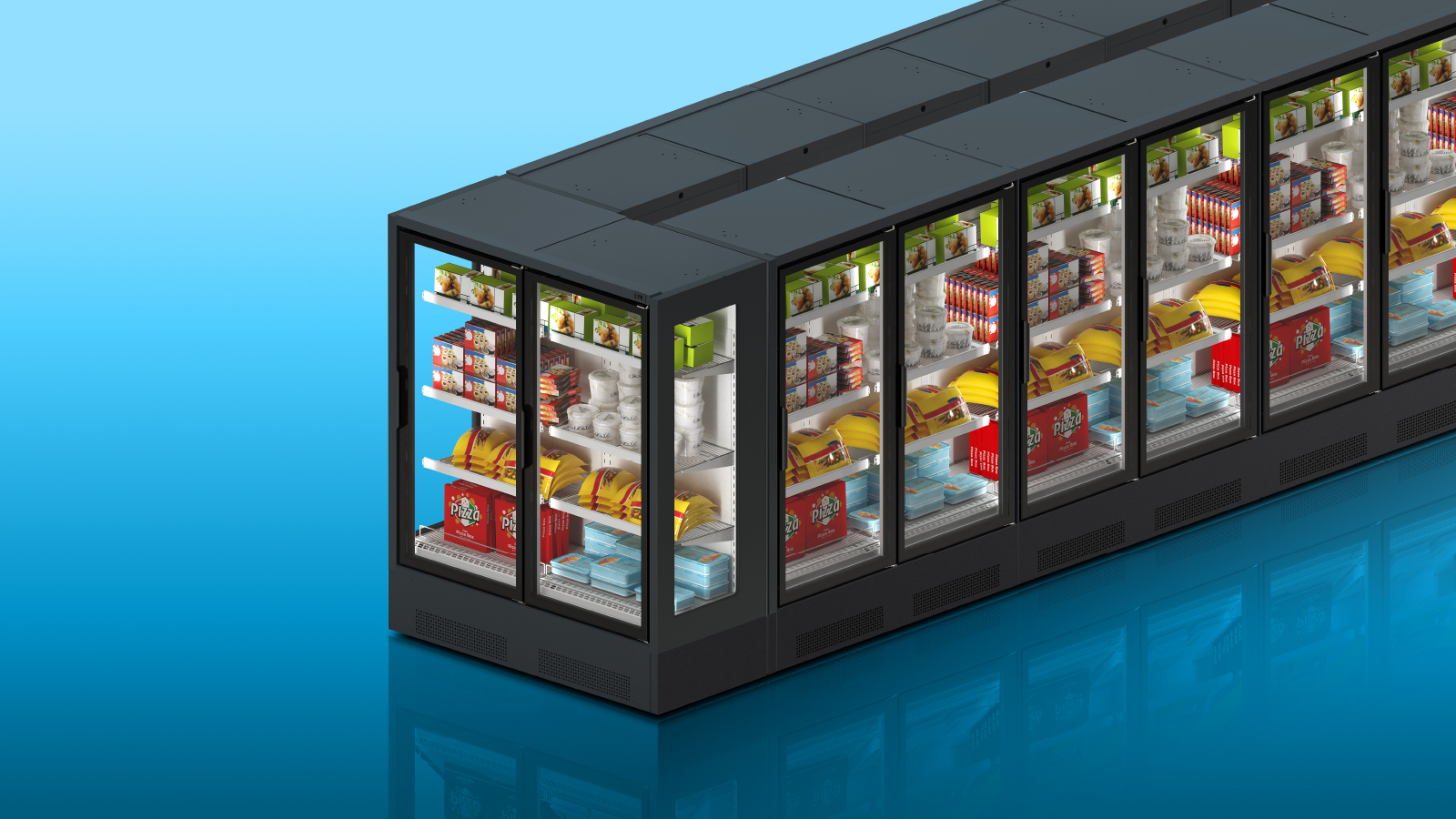

In the LINE UP app, the equipment is connected by a bonding sealant, ensuring thermal insulation.
The side walls are eliminated, creating a free space along the entire internal line of the device.
