CHV/TC
210/320/430/550
Características Gerais
- Exterior em chapa galvanizada revestida a PVC;
- Interior em chapa galvanizada revestida a PVC atóxico;
- Evaporador e condensador em tubo de cobre;

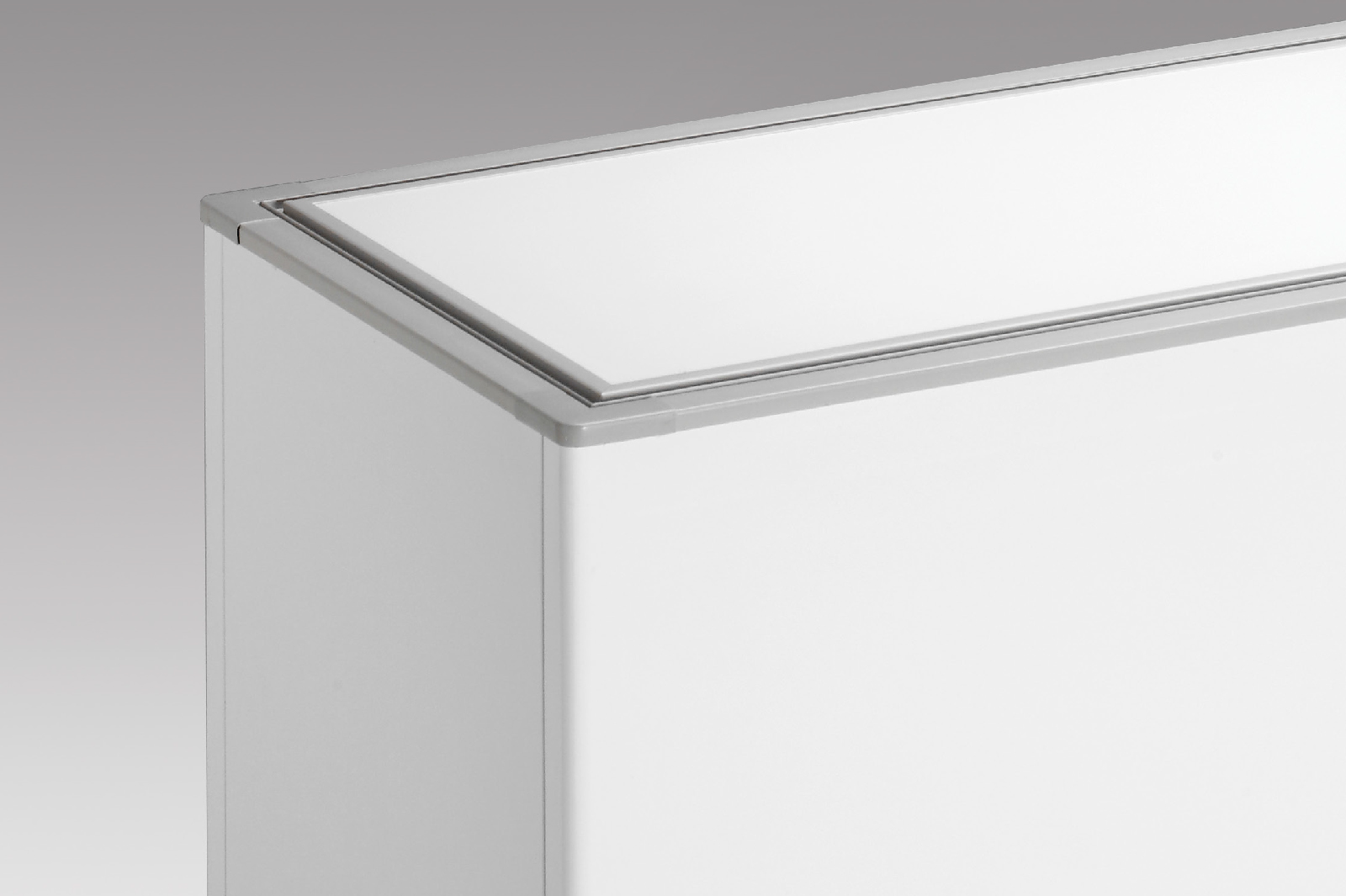

- Aros aquecidos para evitar condensações e bloqueio das tampas;
- Termómetro para controlo de temperatura interior;
- Tampas de correr em chapa e isoladas com poliuretano;
- Deslizadores para fácil movimentação;
- Esgoto de àgua frontal e de fácil acesso.
congelador de tampas de correr
210 CHV/TC | 320 CHV/TC | 430 CHV/TC | 550 CHV/TC | ||
---|---|---|---|---|---|
Technical Data | |||||
Temperature range | °C | -15/-26 | -15/-26 | -15/-26 | -15/-26 |
Analogic thermometer | ✓ | ✓ | ✓ | ✓ | |
Digital thermometer | ○ | ○ | ○ | ○ | |
Electronic controller | ○ | ○ | ○ | ○ | |
Net volume | lt | 146 | 231 | 315 | 426 |
Gross volume | lt | 185 | 294 | 397 | 534 |
Electrical Data | |||||
Voltage/Frequency | V/Hz | 230/50 | 230/50 | 230/50 | 230/50 |
Rated Power | W | 151 | 169 | 189 | 189 |
Rated Current | A | 1.4 | 1.7 | 2.3 | 2.8 |
Energy Consumption | kWh/24h | 1,10 | 1,25 | 1,39 | 1,90 |
Efficincy class | A to G | ![]() |
![]() |
![]() |
![]() |
Refrigerant Data | |||||
Refrigerant type | R290 | R290 | R290 | R290 | |
Number of compressors | 1 | 1 | 1 | 1 | |
Maximum operating pressure | bar | 70 | 70 | 70 | 70 |
Dimensions and Weight Data | |||||
Cabinet dimensions | mm | 800x600x820 | 1100x600x820 | 1410x600x820 | 1810x600x820 |
Packaging dimension | mm | 820x700x920 | 1120x700x920 | 1430x700x920 | 1830x700x920 |
Net weight | kg | 46 | 56 | 68 | 82 |
Gross weight | kg | 54 | 65 | 77 | 91 |
